High Quality Custom Rubber Pad for Railway

FOB Reference Price:Get Latest Price
US $1-2.5 / Piece | 1000 Piece/Pieces (Min. Order)
Supply Ability:
100000 Piece/Pieces per Month
Port:
Shanghai/Ningbo
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Qianlang rubber pad
Model Number:
QL-CRPR
Size:
Customized
Marterial:
NR, SBR, Neoprene etc
Hardness:
DURO 80 Shore A
Color:
Black
Technology:
Moulding
Packaging & Delivery
Packaging Details
cartons & wooden case
Delivery Time
as per your order
Product Description

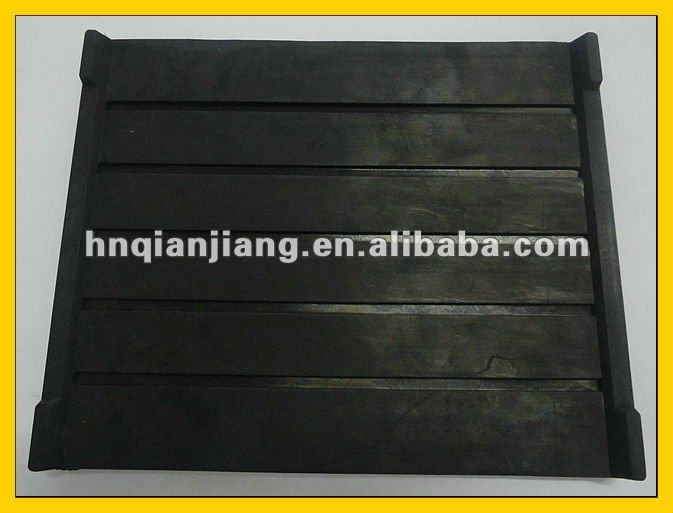

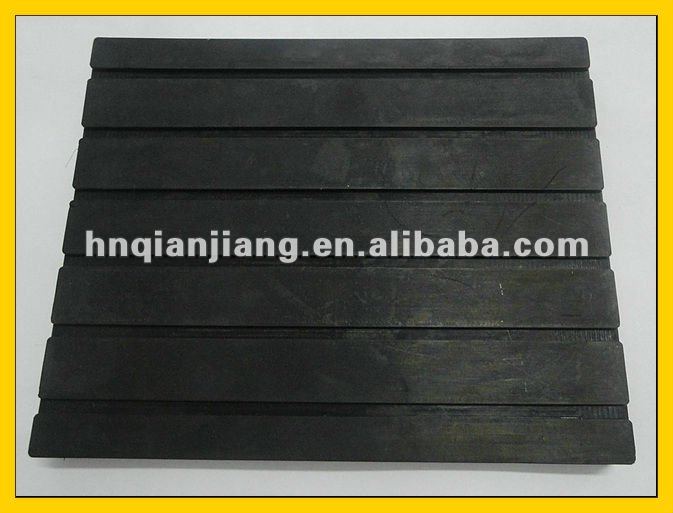

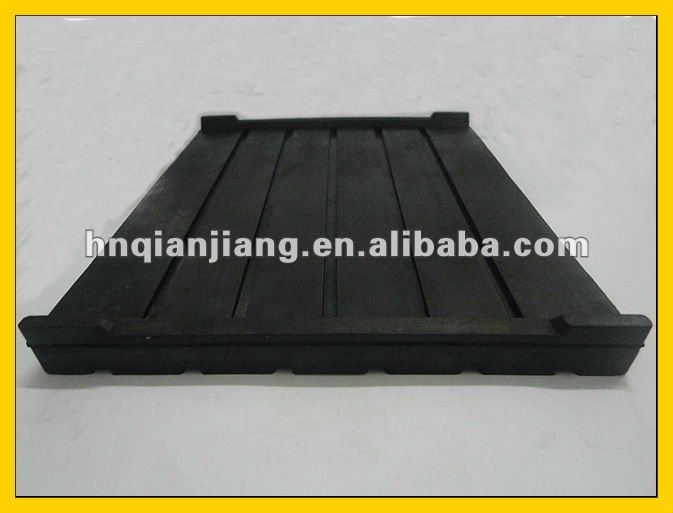

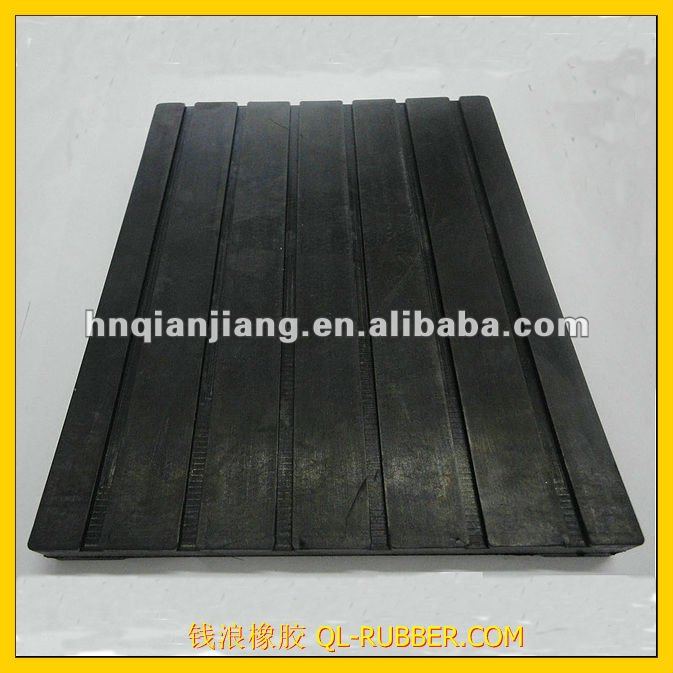

Railway rubber pad is an important part of the track structure. It is installed between the rail and the concrete sleeper. Its main function is to buffer the high-speed vibration and impact generated when the vehicle passes through the rail, protect the road bed and sleeper, and carry out the electrical insulation of signal systems. And long-term exposure in the atmosphere, railway rubber pad is required to have good resistance to natural aging, cold and heat. The rubber pad for subway has a good performance of low noise absorption.

  • Railway rubber pads have good vibration damping, anti-aging, abrasion resistance, stability, and strong resistance to high and low temperature. The material is composed of natural rubber, SBR, neoprene, HDPE, EVA, high-density polyethylene and other combinations, so the railway rubber pads have good flexibility, and it's not deformed or broken easily at various temperatures.
  • Railway rubber pads have the advantages of long life cycle, low costs for maintenance and replacement.

Materil requirements of one project

ItemValue
Shore Hardness A 75~85
Tensile Strength≥10 Mpa
Elongation at Rupture≥250%
Akron Abration≤ 0.6 cm3
Compression Set≤30%
200% Stressatdefiniteelongation≥9.5 Mpa
Operating Resistance≥1×106 Ω
Stiffness Coefficient60~80 KN/mm
Hot Air Ageing Test(100°C×72h)Elongation at Rupture ≥150 %
Tensile Strength ≥10 Mpa
Note:(Temperatura:-20~70°C)
Packaging & Shipping

Packaging

1) Pack railway rubber pads into woven bags

2) Put the bags onto the Pallets





Shipping

We can send the small order via air and large quantity via ocean.

And we have a good discount price from FedEx, UPS, DHL and other logistics company.

Company Information

HAINING QIANLANG RUBBER PRODUCTS FACTORY is specialized in the manufacturing rubber products for more than 20 years.
Our main Products contain o-rings, washers, grommets, bushings, mounts, bellows, plugs, bumpers, suction cups, silicone wristbands, gaskets, hoses, extrusions, rubber valve seat and other kinds of rubber parts, wide varieties, complete in specifications. Customization is our advantage. We can design and manufacture the products meet customer satisfaction according to customer's drawings, samples and ideas. And we make the moulds by ourselves, so we can provide you with competitive prices and products.

FAQ

Q: Are you manufactory?

A: Yes, we are manufactory, not a trade company, we have own technicist and workshop, design, make moulds and produce, so the product manufacturer provides straightly, you will get the best price.



Q: Can you make all kinds of rubber products?

A: Sorry, we are not perfect, but make-to-order is our important service and we are very experienced, if you tell us the necessary information (size, drawing, material etc.), we will make out the satisfied products for you.



Q: What’s your material?

A: Our materials contain Silicone, FKM, Viton®, NBR, EPDM, NR, PU, HNBR, SBR, BR, CR, SEP, Butyl, EPM, Fluorosilicone, FFKM, Aflas and ACM etc. If the material is special rubber, such as NBR and PVC mixed, that’s also OK. If you don’t know the material, please tell us the work environment and requirement of your products, we will suggest the best material.



Q: Which 3D drawing file can you open?

A: We can open 3D file including Solidworks, DXF, DWG, Lip Feat Part, Parasolid, IGES, STEP, ACIS, VDAFS, VRML, STL, CATIA Graphics, ProE Part, ProE Assembly, Unigraphics, Inventor Part, Inventor Assembly, Solid Edge Part, Solid Edge Assembly, CADKEY, ADD-Ins, IDF, Rhino etc.



Q: Why is your mould cost so cheap?

A: Because we make the moulds by ourselves, no other hidden cost.



Q: Do you accept a small order?

A: Yes, that’s OK, and you can pay by PayPal, that’s convenient for you
